Overview

A Payment Profile is RevCent’s payment decision engine for credit card requests. It defines the path a payment request follows, from its initial evaluation through the filters and actions that determine whether to process, route, modify, or stop the request.

Payment Profiles let you tailor payment handling to your business rules. You can evaluate signals such as campaign, customer group, metadata, BIN profile, card type, currency, amount, product group, request type, and previous gateway responses before selecting a gateway or taking another action.

This flexibility helps improve approval strategy, apply distinct routing rules to different products or audiences, manage retries and declines deliberately, and use fallback gateways when an initial path is unsuccessful. You can also run RevCent Functions for custom logic and responses. View some examples of what you can build.

Payment Flow Builder

The payment flow builder is the visual editor, allowing you to insert, drag, drop and connect nodes. Each node has a specific purpose, either as an action or a filter.

Nodes

The flow builder is built around nodes, which are able to be connected by selecting a node output and dragging to another nodes’ input.

Node Types

There are three node types and each type has a sub type.

1. Start Node
2. Filter Node
3. Action Node

Node Inputs

All nodes have a single input, except for the Payment Request start node.

Node Outputs

Depending on the node type, there can be zero, one, two or three outputs. The node sub type determines the node output.

Connecting Nodes

Connect nodes by selecting a nodes’ output and dragging to another nodes’ input.

Start Nodes

There is a single start node type, the Payment Request node.

Payment Request

The only start node available is the Payment Request node type. Every payment profile must begin with a start node in the visual builder. Drag and drop the start node to begin building your payment flow.

Only one start node is allowed, and is the starting point for the remainder of the flow.

Filter Nodes

All filter nodes have a green and red output. The green output is if the filter passed, the red output is if the filter failed.

Attempt Count

The attempt count filter allows you to filter based on the number of attempts specific to the entity being processed. You have the option to filter whether the attempt count is less than or equal to, or greater than or equal to. Note: Applies to initial sale (not pending sale recovery), and subscription renewal request types only. Request types and attempt calculations explained below.

• Initial Sale: An attempt is the previous completion of a payment flow for the same sale. I.e., customer previously clicked to purchase, for the same sale, and was declined after the flow request ended.
• Subscription Renew: An attempt is the number of subscription renewals, which includes the current one being processed. I.e., if there were 2 prior renewals, then the attempt count is 3. If there were no prior renewals, then the attempt count is 1.

Example Node

In the example above, we are filtering based on the number of attempts being greater than or equal to 4. If the number of attempts is greater than or equal to 4 (passed), the green output would be followed. If the number of attempts is less than 4 (failed), the red output would be followed.

BIN Profile

The BIN profile filter allows you to filter based on the first 6 of the current credit card being used for the payment request via BIN profile. You have the option to filter on whether a card BIN is within a BIN profile, not within a BIN profile, or both.

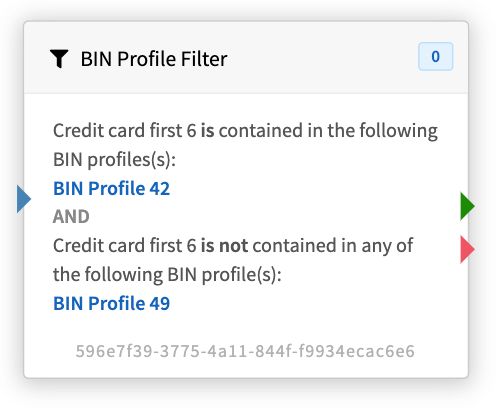

Example Node

In the example above, we are filtering based on the first 6 digits of the credit card being used to process payment. We previously created BIN profiles, with one more BIN’s in each. If the card first 6 is in BIN Profile 42 and not in BIN Profile 49, then the green output would be followed, else the red output.

Campaign

The campaign filter allows you to filter based on the campaign associated with the request. You have the option to filter on whether the request is associated with a campaign, not associated with a campaign, or both.

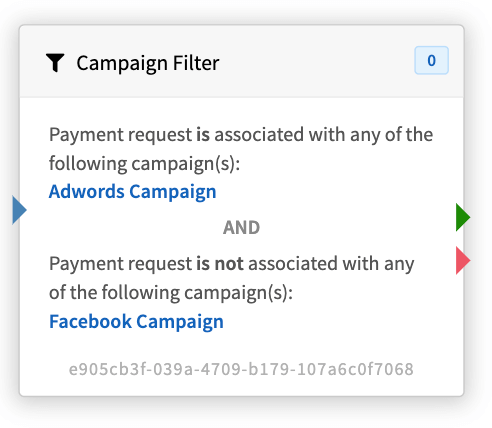

Example Node

In the example above, we are filtering based on the campaign being one and not the other. If the campaign associated with the request is Adwords Campaign, and is not the Facebook Campaign, then the green output would be followed, else the red output.

Card Type

The card type filter allows you to filter based on the card type being used to process payment. You have the option to filter on whether the card type is one or more types, is not one or more types, or both.

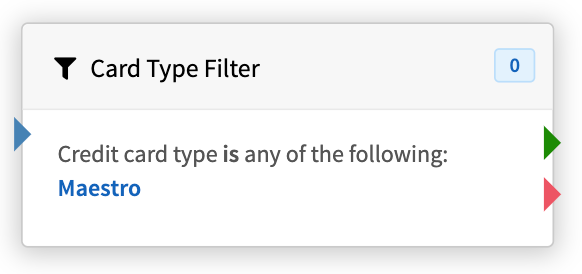

Example Node

In the example above, we are filtering based on the card type being Maestro. If the card type is Maestro then the green output would be followed, else the red output.

Currency

The currency filter allows you to filter based on the currency associated with the request. You have the option to filter on whether the currency is, is not, or both.

Example Node

In the example above, we are filtering based on the currency being one and not the other. If the currency associated with the request is USD, and is not EUR, then the green output would be followed, else the red output.

Customer Group

The customer group filter allows you to filter based on the customer group(s) of the customer associated with the request. You have the option to filter based on whether a customer is in a customer group, not in a customer group, or both.

Important: This should be used as a historical filter for pre-existing customers. Customer groups do not apply to customers instantly. Please read the list of caveats below carefully.

Caveats

• It may take up to 15 minutes after the customers’ most recent action for the applicable customer group(s) to be applied/removed.
• If a customer recently attempted to purchase, recently received a refund, etc., qualifying customer group(s) may not be applied or removed for at least 15 minutes.
• If you recently changed one or more customer groups’ settings, all past customers are not refreshed to reflect updates to any of their customer group(s) until 2:00am EST each day.

Example Node

In the example above, we are filtering based on the customer associated to the request not being in a specific group. If the customer associated with the request is not in the Lifetime value under 100 customer group, then the green output would be followed, else the red output.

Gateway Response

The gateway response filter allows you to filter based on the most recent response received from a gateway in the current payment request. Enter one or more terms, each separated by a new line, which must be contained in the gateways response in order for the filter to pass. Useful for determining whether to continue and/or perform further actions.

Note: The profiles’ settings for kill terms and max attempts, if enabled, will still apply.

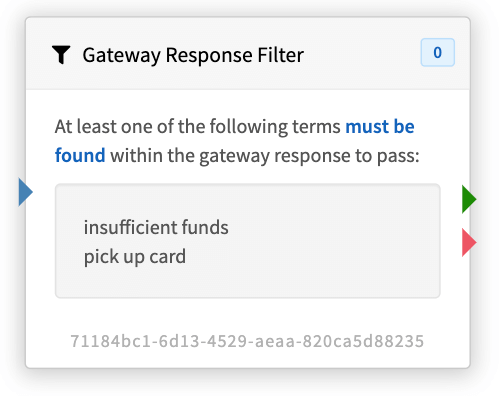

Example Node

In the example above, we are filtering based on either of two specific terms/phrases being found within the most recent gateway response. If either insufficient funds or pick up card are found in the gateways’ response, then the green output would be followed, else the red output.

Metadata

The metadata filter allows you to filter based on the metadata contained within one or more sources. Select the metadata source, i.e. where to search for metadata entries. Payment Request is any metadata contained in a current Initial Sale API call. You have the option to filter on whether the source has or does not have specific metadata names and values.

Metadata Sources

• Customer: Any metadata contained in the customer related to the entity being processed.
• Current Chosen Gateway: The current gateway chosen, prior to processing payment, if one has been chosen.
• Payment Request: Applies to initial sale request type only, with the metadata contained in a current Initial Sale API call.
• Sale: Any metadata contained in the sale related to the entity being processed.
• Subscription: Applies to subscription renew request type only.
• Trial: Applies to trial expire request type only.

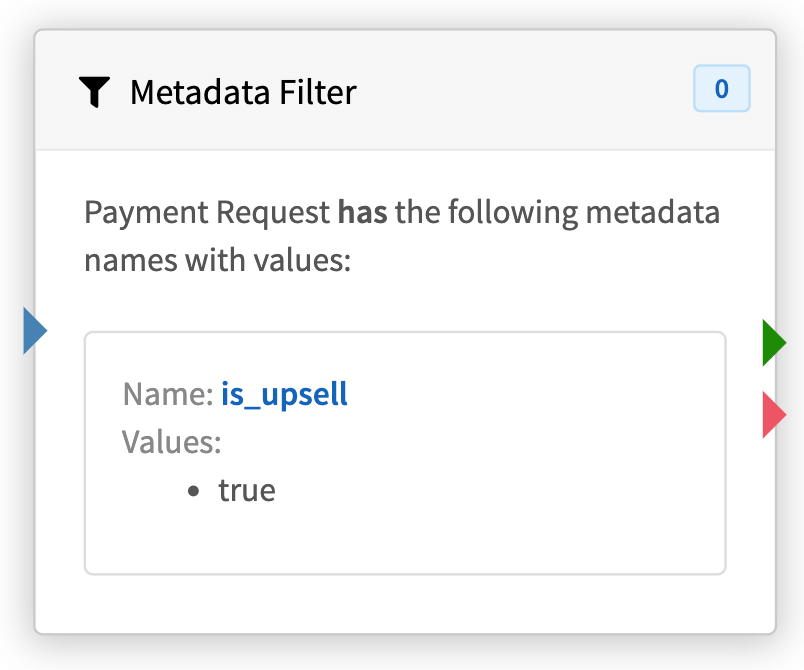

Example Node

In the example above, we are filtering based on the initial sale request having the is_upsell metadata name having a value of true. If the metadata matches, i.e. [{"name": “is_upsell”, “value”: “true”}] then the green output would be followed, else the red output.

Payment Amount

The payment amount filter allows you to filter based on the payment amount that is to be processed. You have the option to filter whether the amount is less than or equal to, or greater than or equal to a certain amount.

Example Node

In the example above, we are filtering based on the request payment amount being less than or equal to $300.00. If the request is less than or equal to $300.00 the green output would be followed, else the red output.

Process Payment Count

The process payment count filter allows you to filter based on the number of Process Payment nodes executed in the current flow request. I.e. the number of times that payment was attempted already in the request. You have the option to filter whether the process payment count is less than or equal to, or greater than or equal to a certain number.

Example Node

In the example above, we are filtering based on the number of payment nodes executed in the current flow request. If the number of process payment nodes executed is less than or equal to 3, the green output would be followed. If the number of process payment nodes executed is greater than 3, the red output would be followed.

Product Group

The product group filter allows you to filter based on the product(s) contained in a product group associated with the request. You have the option to filter on whether a product is in a product group, not in a product group, or both.

Example Node

In the example above, we are filtering based on the requests’ product being within the Subscription Group. If one or more request products are in the Subscription Group, the green output would be followed, else the red output.

Request Type

The request type filter allows you to filter based on the request type associated with the request. You have the option to filter on whether the request type is, is not, or both.

Request Types

• Initial Sale
• Pending Sale Profile Recovery
• Subscription Renew
• Trial Expire

Example Node

In the example above, we are filtering based on the request type being Subscription Renew. If the request type is Subscription Renew, the green output would be followed, else the red output.

Merge Filters

The merge filters node allows you to combine multiple filters. Connect the grey output (third output) of a Merge Filters node to the input of one or more filter nodes to merge all connected as one. All filters connected (merged) to the grey output must pass in order for the merge filter to pass.

Node Outputs:

• Green: All merged filters passed.
• Red: One or more merged filters failed.
• Grey: Connect to other filters to merge together as one.

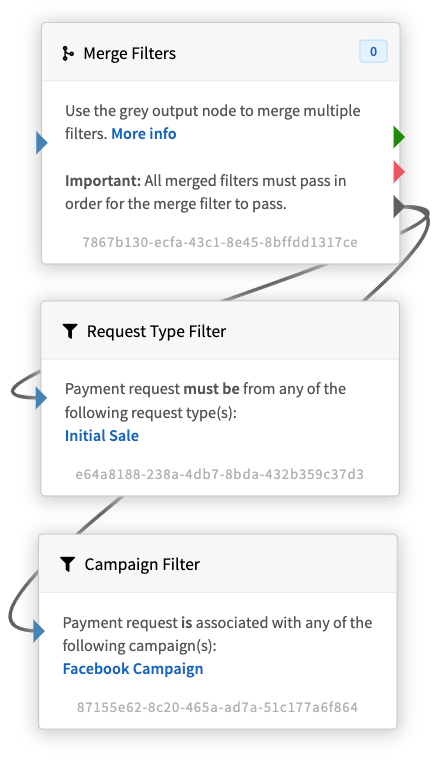

Example Node

In the example above, we are merging multiple filters into a single filter. We used the grey output node to connect the Request Type and Campaign filters. If the request type is Initial Sale and the request is associated with the Facebook Campaign, the merge filters green output would be followed, else the red output.

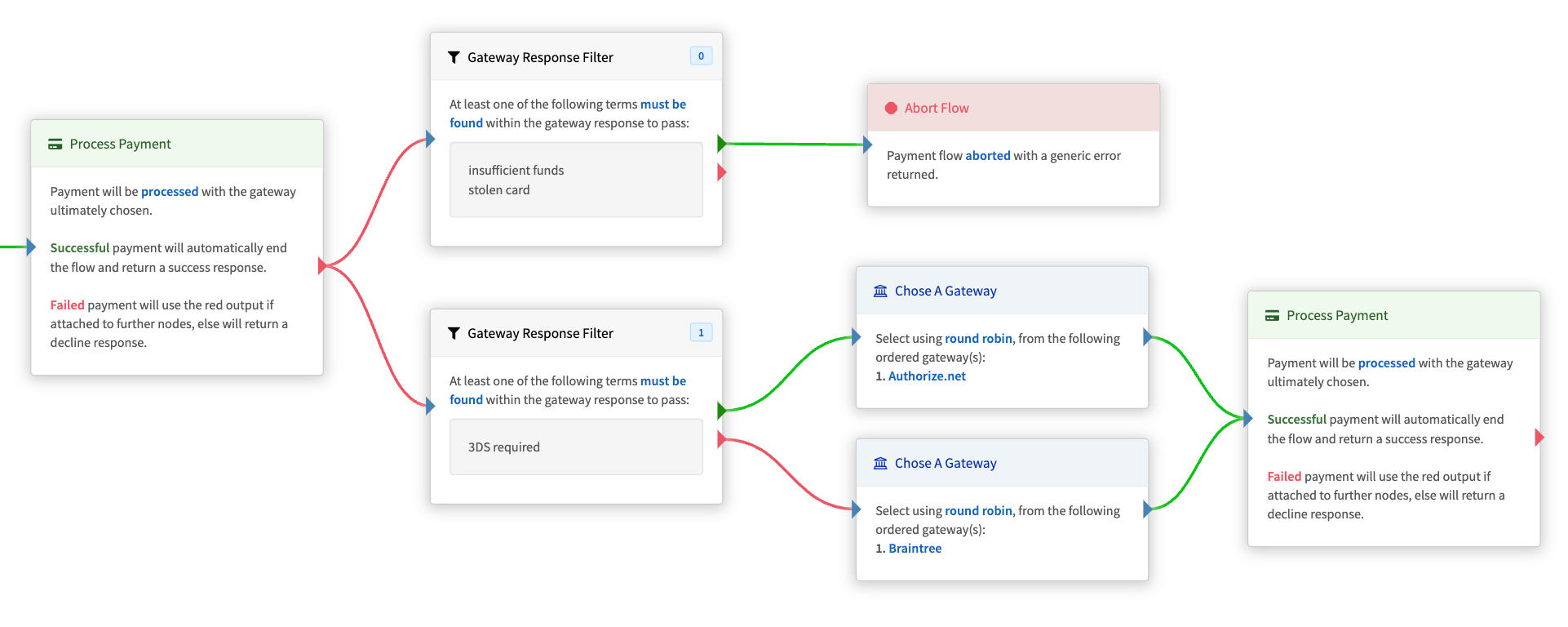

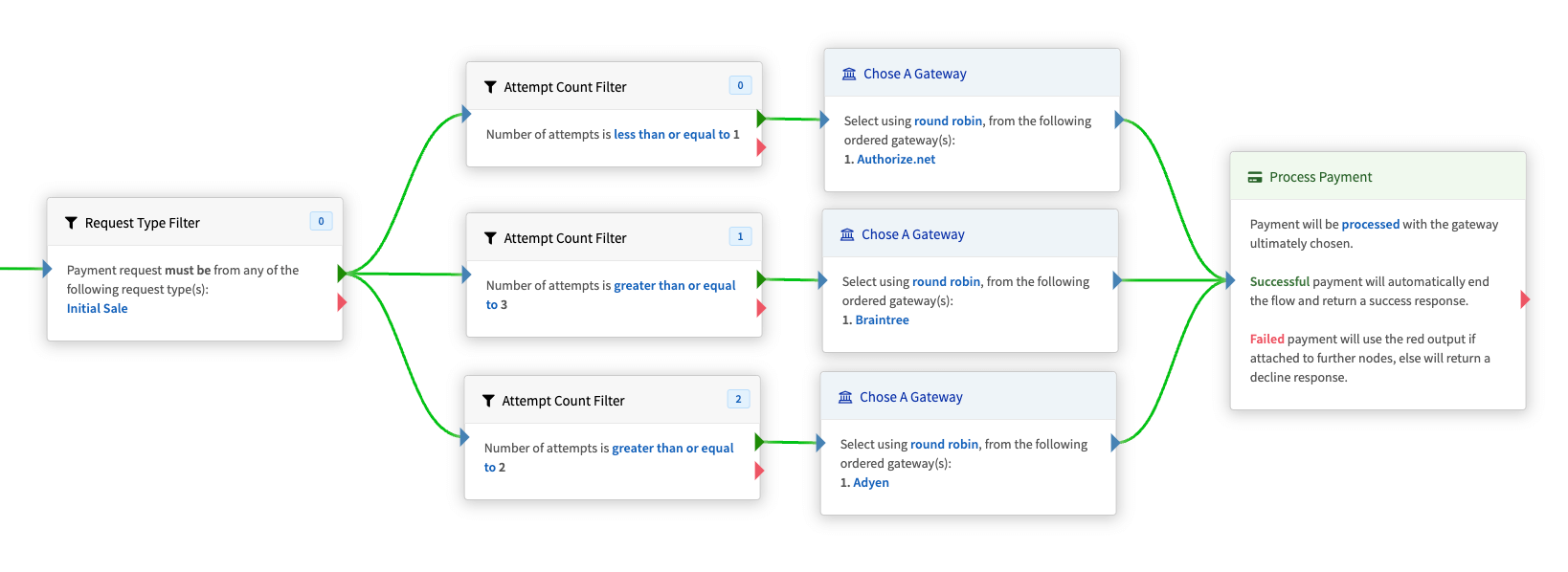

Filter Node Priority

You may wish to have multiple filters checked separately, with certain ones checked before others, when at the same point in a flow. The same point being the part of the flow where multiple filters coincide at the same time. Every filter has a filter priority, allowing you to tell RevCent which filter to check before others when at the same point.

Priority Value

Important: The lower the number, the higher up the list, i.e. checked first. For example, a filter with priority 0 will be checked before a filter with priority 1. Filters with the same priority are checked in random order at time of processing.

Action Nodes

The following action nodes are available.

Abort Flow

Payment flow will be aborted. Use this node if you want to stop the flow and return an error for a specific campaign, gateway response, failed filter, etc. If a payment has been attempted, the decline results will be returned, else an error will be returned. Note: The payment profiles’ settings for kill terms and max attempts, if enabled, will still apply.

Choose A Gateway

The Choose a Gateway node determines the gateway to be used to process a payment request. Several settings and options are available.

Selection Source

Select the source, either from a list of gateways, or a list of gateway groups.

Options:

• Gateways: If selected, a list of gateways will appear. This will allow you to sort as well.
• Gateway Groups: If selected, the gateway group selected will appear.
• Last Approved Gateway: If selected, RevCent will choose the gateway last approved for the customer, ignoring all revenue rules and time rules. Note: If none exists, RevCent will defer to the failsafe gateway.
• Last Declined Gateway: If selected, RevCent will choose the gateway last declined for the customer, ignoring all revenue rules and time rules. Note: If none exists, RevCent will defer to the failsafe gateway.

Selection Source - Gateway Group(s)

Select one or more gateway groups. All gateways within selected gateway groups will be merged, ignoring each gateway groups’ choice method and gateway sort order. The merge will create a single list of unique gateways, sorted randomly. The Selection Method setting will determine the final gateway.

Selection Source - Gateway(s)

When selecting Gateways as the selection source, two boxes will appear. The first box is for choosing gateways, the second is for sorting chosen gateways.

You choose the gateway(s) you want by clicking the blue down arrow.

When you click the blue down arrow in the Select Gateways box, this will add the gateway to the Gateway(s) Selected list. This is the list of gateways that RevCent will choose from. You can also sort them by dragging up or down.

Selection Method

Select the method in which a gateway will be chosen from the list of gateways from selected gateways/gateway groups.

Options:

• Evenly Distribute: Process valid gateways by even distribution of total captured payment volume within the past 24 hours. Least captured payment volume is what determines which gateway will be used. I.e. If gateway X has total captured payment volume of $210, gateway Y has total captured payment volume of $200 and gateway Z has total captured payment volume of $230, then gateway Y will be used as it has the least total captured payment volume. This is the recommended method when using Gateway Group(s) as the Selection Source.
• Random: Will pick a random gateway from the list of gateways from selected gateways/gateway groups.
• Round Robin: Process gateways in the sort order, beginning with the next gateway after the last transaction gateway used in the sort order. I.e. if gateway 1 was last used, then gateway 2 will be used if valid. If gateway 3 is last used, and is the last gateway in the rotation, then the rotation resets and gateway 1 will be used if valid. Applies to Gateway source only. You can sort gateways by dragging up or down in the Gateway(s) Selected box.
• Sort Order: Process valid gateways in the sort order within the list of selected gateways, always starting with gateway 1. I.e. if gateway 1 is valid, then it will be used, else gateway 2 if valid, and so on. Applies to Gateway source only. You can sort gateways by dragging up or down in the Gateway(s) Selected box.

SmartBin

You can use SmartBin to choose the best gateway during the gateway choice process. This allows RevCent to pick the best gateway based on the customer credit card and the statistical likelihood of success within the gateways available for the node at time of payment.

Important: Please read the SmartBin Page thoroughly before deciding to use it.

When you should use SmartBin:

• You have more than one gateway available to process initial sales.
• You approval rates vary greatly based on issuer and gateway chosen.

When you should not use SmartBin:

• You have only one gateway processing initial sales.
• You approval rates are high regardless of issuer and gateway.

When SmartBin is not triggered:

• A Prefer Gateway If condition is met, giving one or more gateway(s) in the choice process produce a prefer score.
• Subscription profile prefer settings outside of this profile produce a prefer score.
• Trial prefer settings outside of this profile produce a prefer score.
• Only one gateway is available to process at time of payment.

Prefer Gateway If

Select one or more conditions in which a gateway should be preferred. CVV Bonus is if a gateway was used in an initial sale where the CVV was passed.
Note: Any subscription profile prefer or trial prefer settings outside of this profile take precedence, i.e. override this setting.

Options:

• Previously Approved for Entity: Give a gateway preference if it has already been successful for the current sale, subscription or trial.
• Previously Approved for Customer (CVV Bonus): Give a gateway preference if it has already been successful for the current customer. In addition, give the gateway a greater preference if it was previously successful when including CVV.
• Previously Declined for Entity: Give a gateway preference if it has already been declined for the current sale, subscription or trial. Useful for retrying declined MID’s when the customer needs to contact their bank.
• Previously Declined for Customer (CVV Bonus): Give a gateway preference if it has already been declined for the current customer. In addition, give the gateway a greater preference if it was previously declined when including CVV.

Terminology:

• Entity: The current sale, subscription, or trial being processed according to the request type.
• Customer: The customer related to the current request.

Do not choose gateway if

Select one or more conditions in which a gateway should not be chosen.

Options:

• Previously Declined In Current Request: If the gateway has been declined in the current flow request, do not choose it.
• Previously Declined For Entity: If the gateway has been declined at any point in the entity’s history do not choose it.
• Previously Declined for Customer: If the gateway has been declined at any point in the customers’ history, do not choose it.
• Previously Approved For Entity: If the gateway has been approved at any point in the entity’s history do not choose it.
• Previously Approved for Customer: If the gateway has been approved at any point in the customers’ history, do not choose it.

Terminology:

• Current Request: The current flow request.
• Entity: The current sale, subscription, or trial being processed according to the request type.
• Customer: The customer related to the current request.

Once Declined Gateway Group(s)

Select one or more gateway groups in which once a decline has occurred for any gateways within the group, no gateways in the same group can be chosen.

Once Approved Gateway Group(s)

Select one or more gateway groups in which once an approval has occurred for any gateways within the group, no gateways in the same group can be chosen.

Do not choose gateway in Gateway Group(s)

Select one or more gateway groups in which a chosen gateway cannot not be in. This is meant to be used as a block list via gateway groups.

Failsafe Gateway(s)

Select one or more gateways to use as a failsafe, in case no gateways could be chosen. A gateway will be selected randomly and used regardless of any revenue or time rules.

Decrease Amount

Do you want to decrease the payment amount before processing? Will only apply to additional payment attempts during a payment request, i.e. will be ignored for the first payment attempt.

Decrease Amount - Percentage

Modify the original transaction amount by a percentage decrease.

Decrease Amount - Fixed

Modify the original transaction amount by a fixed dollar amount decrease.

Swap Card

Do you want to swap to another card if one is available? Will only apply to additional payment attempts during a payment request, i.e. will be ignored for the first payment attempt. Note: Only implemented for subscription renewal and trial expiration requests, not sale requests.

Insert Metadata

Select the entity(s) to insert the metadata entries into. The insert metadata node is unique in that it does not have an output. It is a side action meant to be conducted along with the execution of other filter or action nodes.

Available Entities:

• Sale
• Customer
• Subscription
• Subscription Renewal
• Trial

Available Shortcodes

Use shortcodes for dynamic text. Must follow the same format as shown, i.e. surrounded by hashtags #shortcode#

• #gateway_id# The ID of most recent gateway chosen.
• #gateway_name# The name of the most recent gateway chosen.

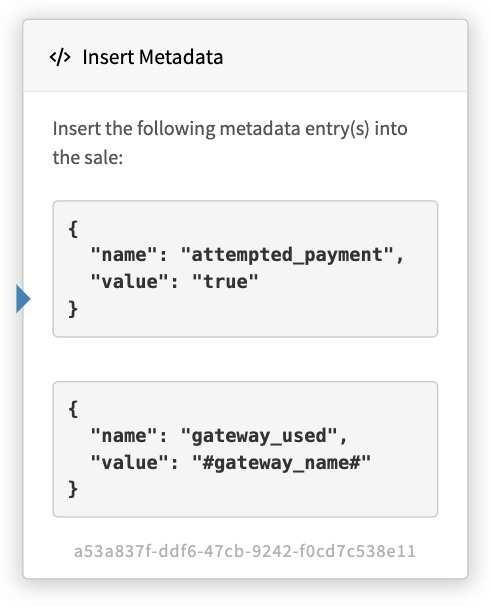

Example Node

In the example above, we are inserting two separate metadata entries into the sale related to the request. Notice the second entry using a shortcode, which is dynamic.

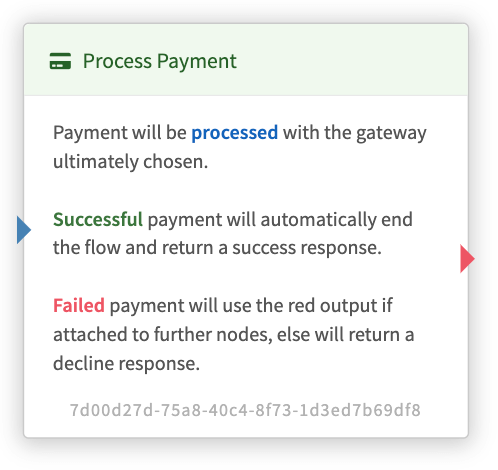

Process Payment

If a gateway has been chosen in a prior node, you can officially process the payment. This is a static node that will send a payment request to the chosen gateway. If the payment is successful, the flow will automatically end and the success response returned. If unsuccessful you can use the red output to connect to further nodes, else the flow will end and the decline response will be returned.

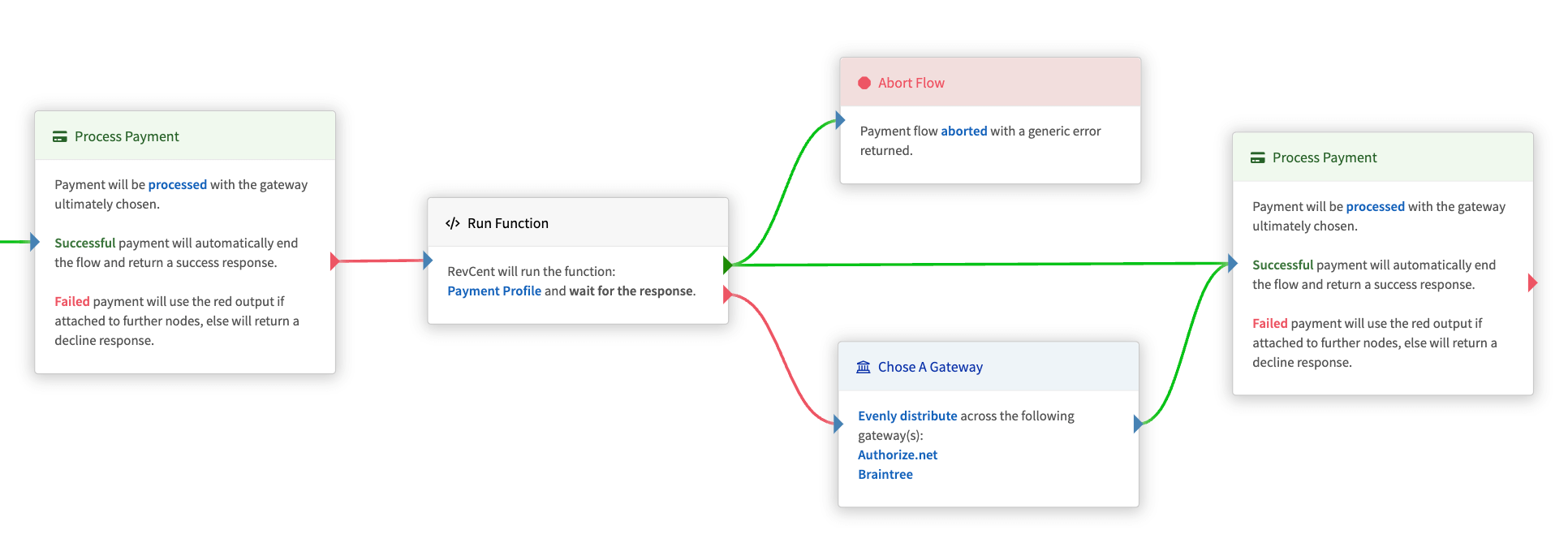

Run Function

You can choose to run a function when processing a payment request. The function can return a specific response, or can run separately without interrupting the payment flow.

Important: This is a highly advanced feature and is only recommended to use if you have an experienced developer and fully understand the payment profile flow process.

Select Function

Select the function you have created.

Run Method

Select the run method. This determines whether the payment request will wait for a response, or continue and run the function separately.

Options:

• Queue And Continue: The function will run separately without waiting for a response from the function, i.e. wont pause the flow. The green output of the current function node will be followed.
• Wait For Response: The function will run and RevCent will wait for the response. The response can determine the next node. Please read the warnings below.

Warning when using the “Wait For Response” method*:***

1. It is always recommended to route the red output as a backup in case the function fails or times out. The red output is treated as a function failure/timeout output.
2. A function is given a max 8 second time to respond within the flow before a timeout error occurs, in which the red output will be followed.
3. Bad function code can result in payments never being processed.
4. Functions cause latency, which will result in having to wait longer for a payment response.

Function Event Data

When the function is executed, it will receive the following event.data object which contains the details of the current flow request. The item details of the flow request is contained in the event.data.item_details object.

{
  "item_type": "sale",
  "item_id": "KnZaE2AZ85SoEX5g5ZbY",
  "item_event": "payment_request",
  "item_details": {
    "request": {
      "type": "sale",
      "method": "create",
      "metadata": [
        {
          "name": "landing_page",
          "value": "v1",
          "entry_date": "2023-10-17"
        }
      ]
    },
    "entity": {
      "item_type": "sale",
      "item_id": "KnZaE2AZ85SoEX5g5ZbY",
      "sub_item_type: "",
      "sub_item_id: "",
      "metadata": [
        {
          "name": "landing_page",
          "value": "v1",
          "entry_date": "2023-10-17"
        }
      ]
    },
    "customer": {
      "id": "qZoyanPoLBI10GlLloaz",
      "first_name": "George",
      "last_name": "Washington",
      "address_line_1": "1600 Pennsylvania Ave",
      "address_line_2": "",
      "city": "Washington",
      "state": "DC",
      "zip": "20500",
      "email": "george@whitehouse.gov",
      "phone": "1234567890"
    },
    "customer_card": {
      "id": "pgdl8NydEOurjPYoYdmy",
      "first_6": "424242",
      "card_type": "visa",
      "bin_details": {
        "bin_bank": "CAPITAL ONE N.A.",
        "bin_phone": "1-800-227-4825"
      }
    },
    "campaign": {
      "id": "JN0Zpj7RGJiwKqAnRoy6",
      "name": "Twitter Campaign"
    },
    "payment_profile": {
      "id": "1rzGgRKJ90UGM9kZMbKY",
      "name": "Flow Profile"
    },
    "payment_amount": 10.7,
    "products": [
      {
        "id": "LYE26YQPv5f5VbJmlpRR",
        "name": "AV 2017",
        "sku": "av_2017",
        "internal_id": "av_2017",
        "quantity": 1,
        "price": 29.99,
        "amount": 29.99,
        "is_trial": true,
        "metadata": []
      }
    ],
    "shipping": [
      {
        "amount": 10,
        "provider": "ups",
        "provider_method": "ups_standard"
      }
    ],
    "tax": [
      {
        "name": "Tax Profile",
        "amount": 0.7
      }
    ],
    "gateway_history": {
      "current": {
        "declined": [
          "8rNnkY45R4Hw1ZBg1yYB"
        ]
      },
      "customer": {
        "approved": [],
        "approved_cvv": [],
        "declined": [
          "8rNnkY45R4Hw1ZBg1yYB"
        ],
        "declined_cvv": []
      },
      "entity": {
        "approved": [],
        "approved_cvv": [],
        "declined": [
          "8rNnkY45R4Hw1ZBg1yYB"
        ],
        "declined_cvv": []
      },
      "gateway_group": {
        "approved": [],
        "approved_cvv": [],
        "declined": [
          "GOGaPRql9oUAAkrm5Ll9"
        ],
        "declined_cvv": []
      }
    },
    "node_id": "837cabc6-46d3-46e5-869d-9819e6af8464",
    "next_nodes": {
      "actions": [
        {
          "id": "43965f05-887a-4e70-8646-0410440a3494",
          "name": "action_process_payment",
          "node_type": "action",
          "node_note": "node note"
        }
      ],
      "filters": []
    },
    "current_step": 2,
    "step_array": [
      {
        "step_action": "initial",
        "step_amount": 10.7,
        "step_card": "pgdl8NydEOurjPYoYdmy",
        "step_gateway": "NMI",
        "step_gateway_id": "8rNnkY45R4Hw1ZBg1yYB",
        "step_gateway_response": "",
        "step_modifier": "",
        "step_num": 1,
        "step_result": "Declined",
        "step_setting": "initial",
        "step_source": "flow",
        "step_transaction": "JN7nVvo0PdtRr2bkbN1X",
        "swap_card": false
      },
      {
        "step_action": "next",
        "step_amount": 10.7,
        "step_modifier": "",
        "step_num": 2,
        "step_setting": "",
        "step_source": "flow",
        "swap_card": false
      }
    ],
    "flow_path": [
      {
        "order": 1,
        "id": "8f6d288f-697e-4c99-92c5-7551ba43c547",
        "node_type": "start",
        "name": "start_payment_request",
        "step_num": 1,
        "result": {
          "code": 1,
          "message": "Processed"
        }
      },
      {
        "order": 2,
        "id": "91da1872-0511-4847-8a1b-a33c603e748b",
        "node_type": "filter",
        "name": "filter_request_type",
        "step_num": 1,
        "result": {
          "code": 1,
          "message": "Filter passed."
        }
      },
      {
        "order": 3,
        "id": "628ee271-cbe2-45a0-8d68-48d0ab8bdf9c",
        "node_type": "action",
        "name": "action_choose_gateway",
        "step_num": 1,
        "result": {
          "code": 1,
          "message": "Gateway chosen.",
          "failsafe_gateway": false,
          "gateway_id": "8rNnkY45R4Hw1ZBg1yYB",
          "gateway_name": "NMI"
        }
      },
      {
        "order": 4,
        "id": "0b8a520e-a74e-4516-8a5b-807337687847",
        "node_type": "action",
        "name": "action_process_payment",
        "step_num": 1,
        "result": {
          "code": 2,
          "message": "Payment declined."
        }
      },
      {
        "order": 5,
        "id": "837cabc6-46d3-46e5-869d-9819e6af8464",
        "node_type": "action",
        "name": "action_custom_function",
        "step_num": 2,
        "result": {}
      }
    ]
  }
}

The event.data.item_details properties:

Your Response Object

If you are using the Wait For Response run method, you must return a response object. Not all properties are required. If no properties are provided, RevCent will consider the node as having “passed", without taking any action, and will follow the green output. If you do not need to have the response take action within the flow, then use the Queue And Continue run method instead of Wait For Response.

Important: Only provide the properties specific to what you want to do when the Run Function node receives the response.

{
    "next_node_id": "43965f05-887a-4e70-8646-0410440a3494",
    "next_output": "1",
    "set_gateway_id": "bOLjn0yvKpUp10qK298R",
    "selection_method": "evenly_distribute",
    "choose_gateways": ["2r7zOBMldVIomKNdKZoG"],
    "choose_gateway_groups": ["GOGaPRql9oUAAkrm5Ll9"],
    "custom_error": "Card CVV Invalid"
}

Flow Process In Action

Below describes how the payment profile flow is processed by RevCent when a payment request is received.

Flow Starts

A payment request is received and is to be processed by the payment profile flow. The Payment Request start node is the beginning of the flow. RevCent begins at the Payment Request node output and continues to other nodes.

Output To Other Nodes

RevCent will follow the output of a current node to any additional nodes connected. The next node to be processed is determined using abort flow, filter first passed, filter first failed, then action, in that order.

Next Node Determination

You can output from one node to multiple nodes, however there is node type and outcome to consider. Below is the node type order.

Flow Process Scenarios

Below are scenarios with explanations of how nodes would be processed. Of course there are different business needs and requirements users may have, and the payment flow builder may be confusing. If you need help building your flow, feel free to contact us.

Filter Output Routing

Below shows an example in which you want to:

1. Route USD payments and a specific BIN to one pair of gateways.
2. Route EUR payments to another pair of gateways
3. If not USD + BIN, and not EUR, then route to another pair of gateways.

1. The Request Type Filter, if passed, connects to a further two filters at the same point in the flow.
2. The next point are the two filters: 1. Merge Filters, which combines Currency Filter (USD) and BIN Profile Filter (BIN Profile 42), along with 2. Currency Filter (EUR).
3. Notice how both the Merge Filters and Currency Filter (EUR) have a filter priority of zero. This means both will be checked in random order.
4. If the Merge Filters passes, i.e. the currency is USD and the BIN of the card being process is contained in BIN Profile 42, then the next node is the Choose Gateway node for Braintree and Checkout.com.
5. If the Currency Filter (EUR) filter passes then the next node is the Choose Gateway node for Adyen and Worldpay.
6. If both the Merge Filter and Currency Filter (EUR) fail, which means it is neither USD+BIN Profile 42 nor EUR, the red output for the Merge filter will be followed, as there is a red output connection. In this case the next node is the Choose Gateway node for Authorize.net and Stripe.
7. All three Choose Gateway nodes output to a single process payment node.

Multiple Filters With Priority

Below is an example if you wanted to route to different gateways depending on the number of payment attempts for a sale. You want to:

1. Send the first payment attempt to Authorize.net.
2. Send the second payment attempt to Adyen.
3. Send the third and any additional payment attempts to Braintree.

1. The Request Type Filter, if passed, connects to a further three filters at the same point in the flow.
2. The next point in the flow are the three attempt count filters. There is a priority set for each attempt count filter. The lowest number priority is checked first.
3. The less than or equal to 1, with a priority of 0, is checked first, which is telling RevCent that the very first payment attempt should be sent to Authorize.net.
4. The greater than or equal to 3, with a priority of 1, is checked second, which is telling RevCent that for the third and any additional payment attempts, send to Braintree.
5. The greater than or equal to 2, with a priority of 2, is checked last, which is telling RevCent that only for attempt two send to Adyen.
6. Notice how we prioritized the order to ensure that the greater than or equal to 2 filter node is checked last, ensuring that only attempt two would succeed for that last node. The greater than or equal to 3 filter node would catch attempt three and above thus never having attempt three hit the greater than or equal to 2 filter node in the filter priority.

Filter Decline Routing

Below is an example if you wanted to take to different actions when a payment is declined, depending on the decline response, utilizing filters to parse a gateways’ response.

1. If declined with a response containing “insufficient funds” or “stolen card”, then abort the flow and return the decline.
2. If declined with a response containing “3DS required”, send to Authorize.net.
3. If the decline response does not contain any of the terms, send to Braintree.

1. The first process payment node has a red output for routing if declined. If the first payment node was successful, then the success response would be immediately returned. For this example we are assuming that the payment was declined.
2. We first want to check if the gateway response contained either “insufficient funds” or “stolen card”. We use the Gateway Response filter to check both terms separately, if any match we route the green output for that node to the Abort Flow node. The abort flow node will send back the original decline response from the first process payment node.
3. Next we check if the response contained “3DS required”, and if there is a match we route to a Choose A Gateway node with a single gateway of Authorize.net.
4. If none of the terms “insufficient funds”, “stolen card” or “3DS required” are in the response then RevCent will follow the first red output in the filter list. In this case the only red filter output goes to a Choose A Gateway node with a single gateway of Braintree.
5. RevCent always checks for any passed filters first, then checks if any failed filters have a red output connected to further nodes. Read the Next Node Determination section for more detail on how RevCent determines the next node to follow.

Function Decline Routing

Below is an example if you wanted to take to different actions when a payment is declined, utilizing a function to parse a gateways’ decline response. The proceeding output to be taken is determined by a Run Function nodes’ function response. The flow will send a request to a specific function, waiting for the function to return and proceeding according to the function response. Read more about the Run Function node, including the event data a function will receive as well as the proper function output required.

For brevity, we will assume the function code parses the event data, and will determine one of three possible outcomes:

1. The flow should be aborted.
2. A specific gateway should be set and then payment processed.
3. In case of an error, a gateway should be chosen by the flow.

1. The first process payment node has a red output for routing if declined. If the first payment node was successful, then the success response would be immediately returned. For this example we are assuming that the payment was declined.
2. We want to trigger a function and use the functions response to determine the next action to take.
3. If the functions’ response object is {"next_node_id": “43965f05-887a-4e70-8646-0410440a3494”} then the flow will know to route to the next node matching that ID. In this case it would be the Abort Flow node.
4. If the functions’ response object is {"set_gateway_id": “bOLjn0yvKpUp10qK298R”, "next_node_id": “f96f16ba-2cab-4ae5-9932-4f548cd479ba”} then the flow will know to set the current steps’ gateway to the gateway ID returned, and then route to the next node matching that ID. In this case it would be the Process Payment node.
5. If the functions’ response object is {"next_output": “2”} then the flow will know to proceed using the second (red) output and choose any qualifying nodes along the output_2 path.
6. As a failsafe in case of an error or function timeout, we always want to have the nodes’ error output set to continue on an acceptable path. In this case we have the error output proceeding to the Choose Gateway node, which ensures a gateway will be selected and payment retried.

Additional Profile Settings

There are additional settings within the Payment Profile. These additional settings are given precedence over the payment flow. I.e. if these settings are triggered, the payment flow either stops or does not begin at all.

Kill Terms

You have the ability to cancel the payment profile flow if a declined transaction has specific terms/phrases/words in a step gateways’ decline response. This will also cancel/void the related sale being attempted. Note: Only applies to initial sale attempts, not renewals or trial expirations.

For example, if a gateway declines a transaction, and the gateways’ decline response contains the words “pick up card”, you can add the term “pick up card” to your list of kill terms, which will stop the payment flow, kill the sale, and prevent any future purchase attempts for the specific sale.

RevCent does not remember a customers history related to kill terms. For example, if a customer attempts Sale #1, gets declined with a matching kill term, Sale #1 will be cancelled/voided. If the same customer creates a completely new sale, i.e. Sale #2, previous sale cancellations such as Sale #1, will not carry over and automatically cancel Sale #2.

Important: Any kill terms entered that match a term within a gateways’ decline response will immediately stop the payment profile flow and cancel/void the related sale. Kill terms are meant to match specific decline reasons, thus preventing further payment attempts and pending sale recovery. If you enter a basic kill term, such as “the” or “and”, you will most likely kill all declined sales.

Max Attempts

You have the ability to cancel/void a sale if the number of declined payment profile attempts reaches a certain number. Only applies to initial sale attempts, not renewals or trial expirations.

Note: A payment profile attempt is the considered to be the completion of all steps within a payment flow and not an individual step within a flow. I.e. an attempt is the entire flow itself.

Example: If you have 3 steps within a flow, and you set max attempts to 3, then it will take 9 declines for the max attempts to be reached.

For Developers

The Payment Profile offers custom error responses as well the ability to process decline responses. This section is intended to help developers integrate error messages and display specific messages to visitors attempting to check out.

Please make sure that the shopping cart server is able to process the Custom Error Message scenario below.

Custom Error Message

When a RevCent user is processing a payment using a payment profile, they have the option to abort payments attempts and return a custom response of their own. Depending on whether a payment was declined, or not attempted at all, there are two types of custom errors that may exist in the API response. These custom error types do not always exist, so please validate and check if exists or not.

There are two types of custom errors:

1. Where code is not 1 and a non-empty custom_error is present. Payment was declined.
2. Where code is not 1, “error_code”: “E0690” exists and a non-empty message property is also present. No payment was attempted

Custom Error - Payment Declined

It is recommended that in cases where code is not 1 and a RevCent API response has a non-empty custom_error property, display the customer the custom_error.

Example API Response:

{
  "api_call_date": "2023-10-19T23:58:08+00:00",
  "api_call_id": "k6wEkpq5GLHLJBV6JQvk",
  "api_call_unix": 1697759888,
  "code": 2,
  "payment_profile_results": [...],
  "custom_error": "This is a non-E0690 custom error message returned by the payment profile."
}

Notice:

1. Response code is not 1.
2. The “custom_error” property is present and non-empty.

In the case above where both are true, the contents of the custom_error should be displayed to the customer.

Custom Error - E0690 - Payment Not Attempted

It is recommended that in cases where code is not 1, the API response has “error_code”: “E0690” and a non-empty message property, display the customer the message property.

Example API Response:

{
  "api_call_date": "2023-10-19T23:58:08+00:00",
  "api_call_id": "k6wEkpq5GLHLJBV6JQvk",
  "api_call_unix": 1697759888,
  "code": 0,
  "error_code": "E0690",
  "message": "This is a custom error message returned by the payment profile."
}

Notice:

1. Response code is not 1.
2. The “error_code” property equals “E0690”.
3. The “message” property is present and non-empty.

In the case above where all are true, the contents of the message property should be displayed to the customer.
